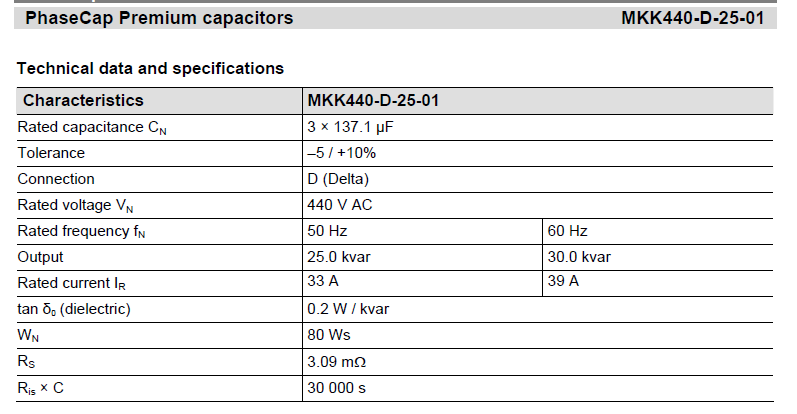

MKK-440-D-25-01 440 Vac / 3 ph / 25 kvar

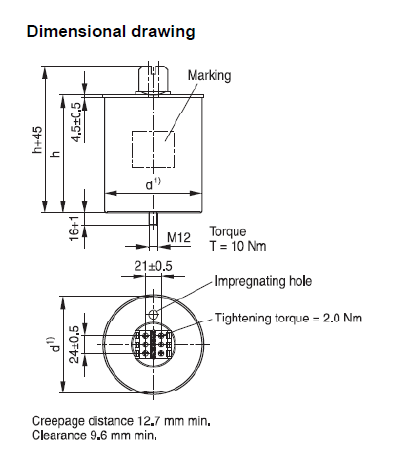

Construction  Dielectric: Polypropylene film  Gas-impregnated, dry type, non-PCB  Concentric winding  Wave cut  Extruded round aluminum can with stud  Provided with ceramic discharge module  Triple safety system Features  Three-phase, delta connected  Self-healing technology  Naturally air cooled (or forced air cooling)  Indoor mounting Typical applications  For power factor correction Terminals  Optimized capacitor safety terminals Mounting  Threaded stud at bottom of can (max. torque for M12 = 10 Nm)

---
